DualVee® – V Bearings Linear Slide

HepcoMotion offers Bishop Wisecarver´s V bearings single-edge linear slide system, perfect for quiet, low friction motion even in hostile environments.

HepcoMotion - DualVee® – V Bearings Linear Slide
HepcoMotion - DualVee® – V Bearings Linear Slide
HepcoMotion - DualVee® – V Bearings Linear Slide
HepcoMotion - DualVee® – V Bearings Linear Slide
Load: up to 26kN
Speeds: up to 5m/s
Low maintenance
Unlimited lengths
Long system life
Works in dirty environments
Quiet and smooth running
Self-aligning system

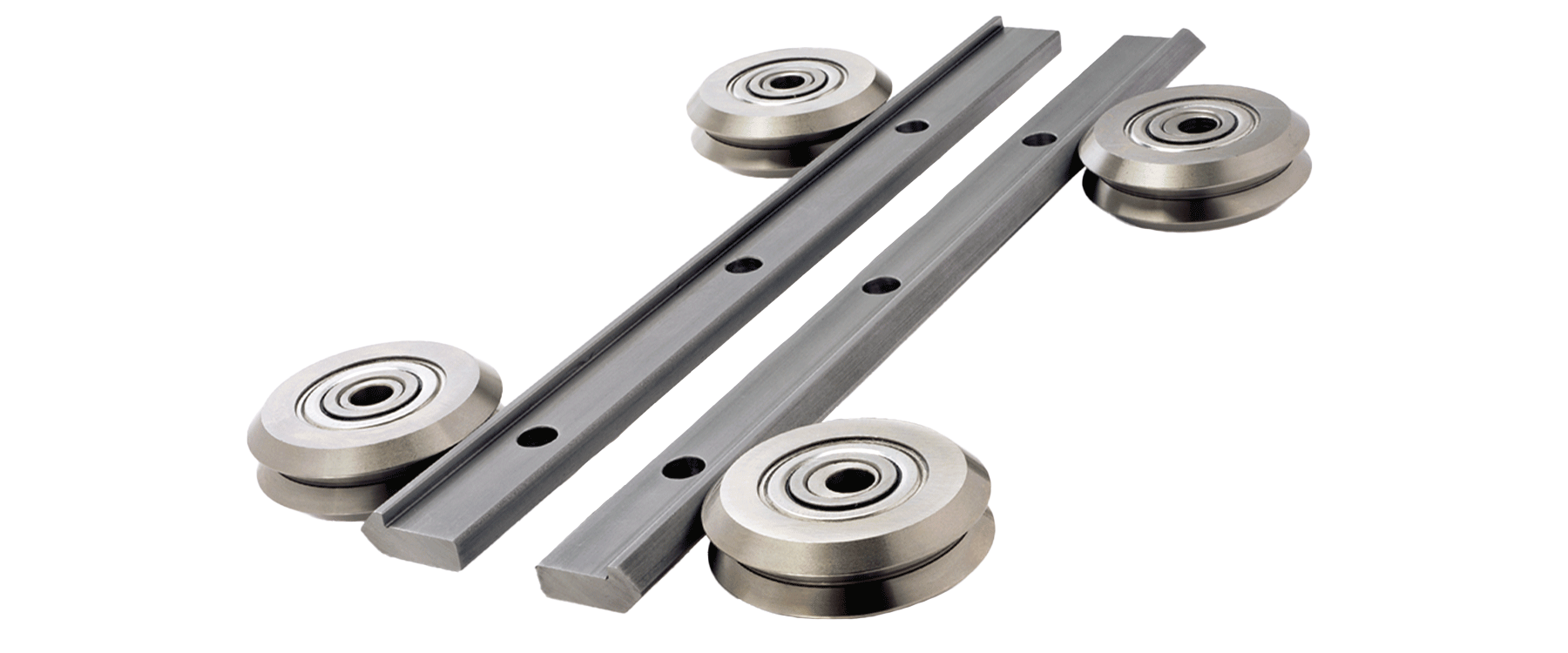

HepcoMotion offers Bishop Wisecarver´s V bearing single-edge guide system, perfect for quiet, low friction motion even in hostile environments.

Simple installation – The rails can be mounted to unground surfaces, saving valuable time. A mounting shoulder allows easy location when assembling.

Adjustable – A combination of eccentric and concentric bearings allows adjustment between track and guide wheels.

Low maintenance, long life – Thanks to V guide technology the system requires hardly any maintenance, guarantees a long system life and is suitable for dirty environments.

Competitively priced – DualVee is a high quality system that comes at a competitive price.

Four sizes and many options – Including stainless steel and polymer linear components.  High temperature and clean room bearings are also available.

Perfect for applications where two rails are required to run in parallel including over large distances such as in machine tool guard door applications.

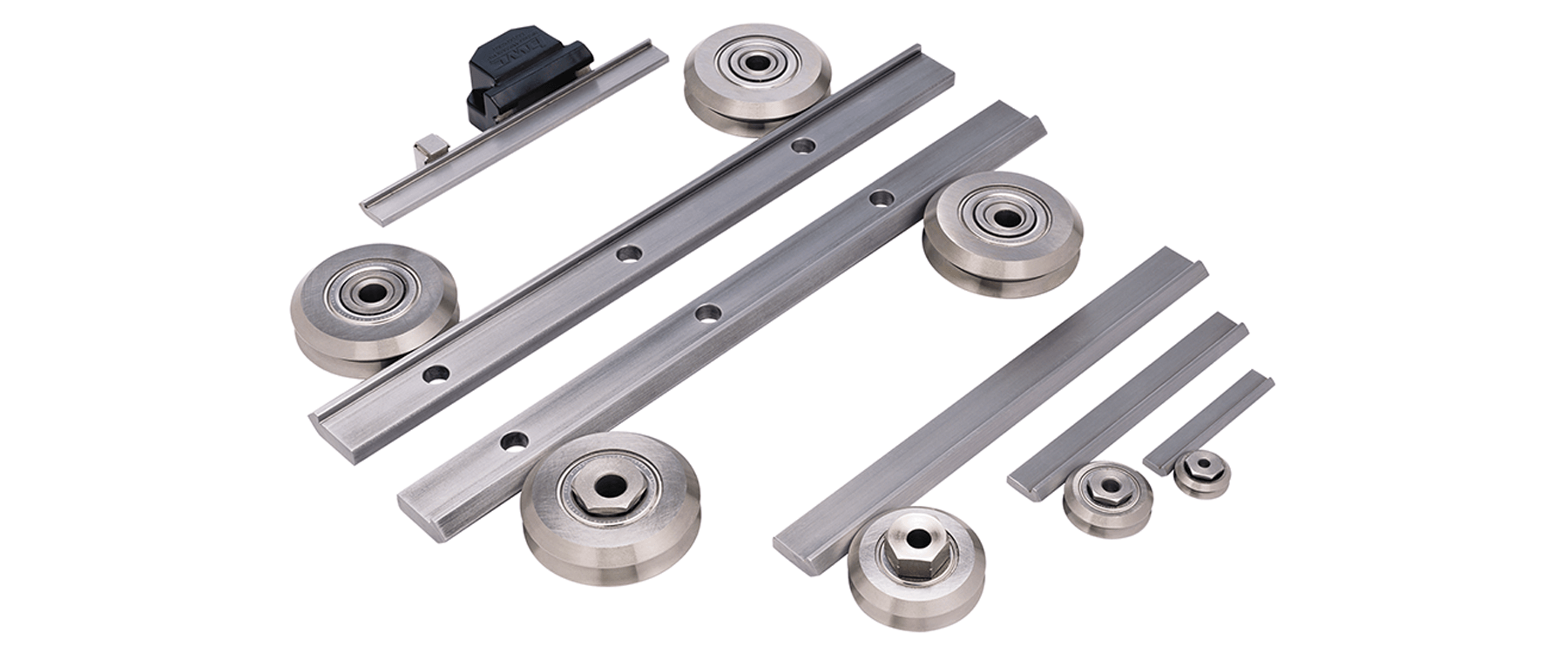

  • This track and V bearing guidance system is available in component form
  • Linear rails up to 6m lengths with optional pre-drilled track for quick installation
  • Inside or outside V surface can be employed to support loads, providing more design freedom
  • Double row angular contact bearing for radial and axial loads
  • Hardened steel guide ensures maximum durability

Bearing sizes and their load capacity

This diagram provides an overview of the bearing sizes available and their load capacity depending on the application type.
