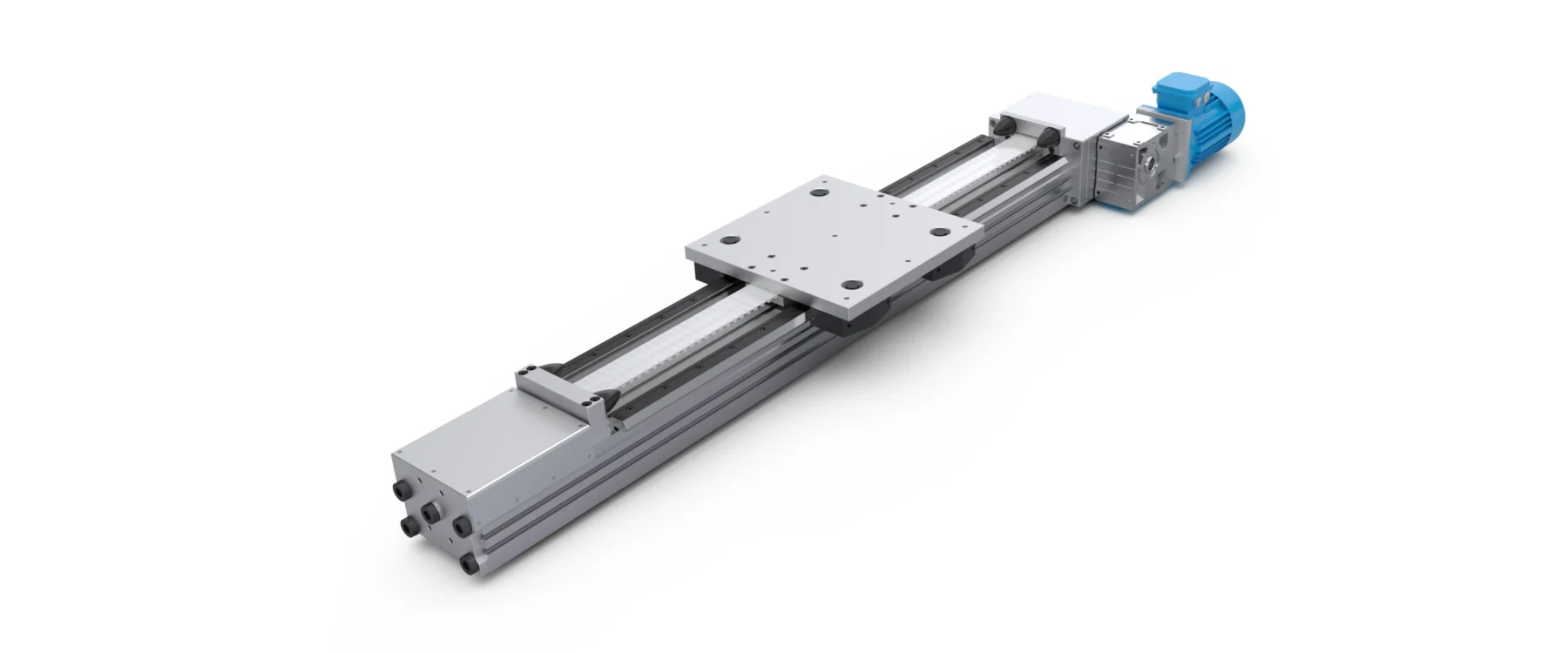

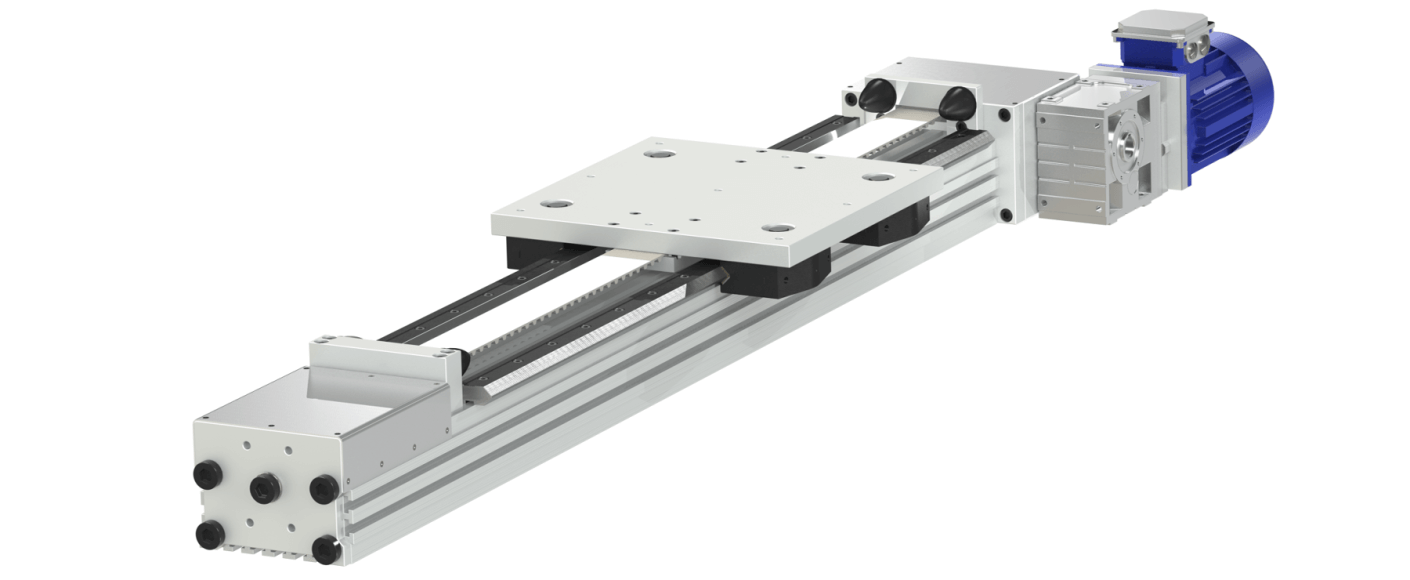

HDLS – Heavy Duty Linear Actuator

A complete linear drive solution designed for heavy loads and forces, and arduous working conditions requiring minimal maintenance and a long service life.

HepcoMotion - HDLS – Heavy Duty Linear Actuator
HepcoMotion - HDLS – Heavy Duty Linear Actuator
HepcoMotion - HDLS – Heavy Duty Linear Actuator
HepcoMotion - HDLS – Heavy Duty Linear Actuator
Load: up to 28kN
Speeds: up to 6m/s
Low maintenance
Long system life
Works in dirty environments
Quiet and smooth running

A complete linear drive solution designed for heavy loads and forces, and arduous working conditions requiring minimal maintenance and a long service life.

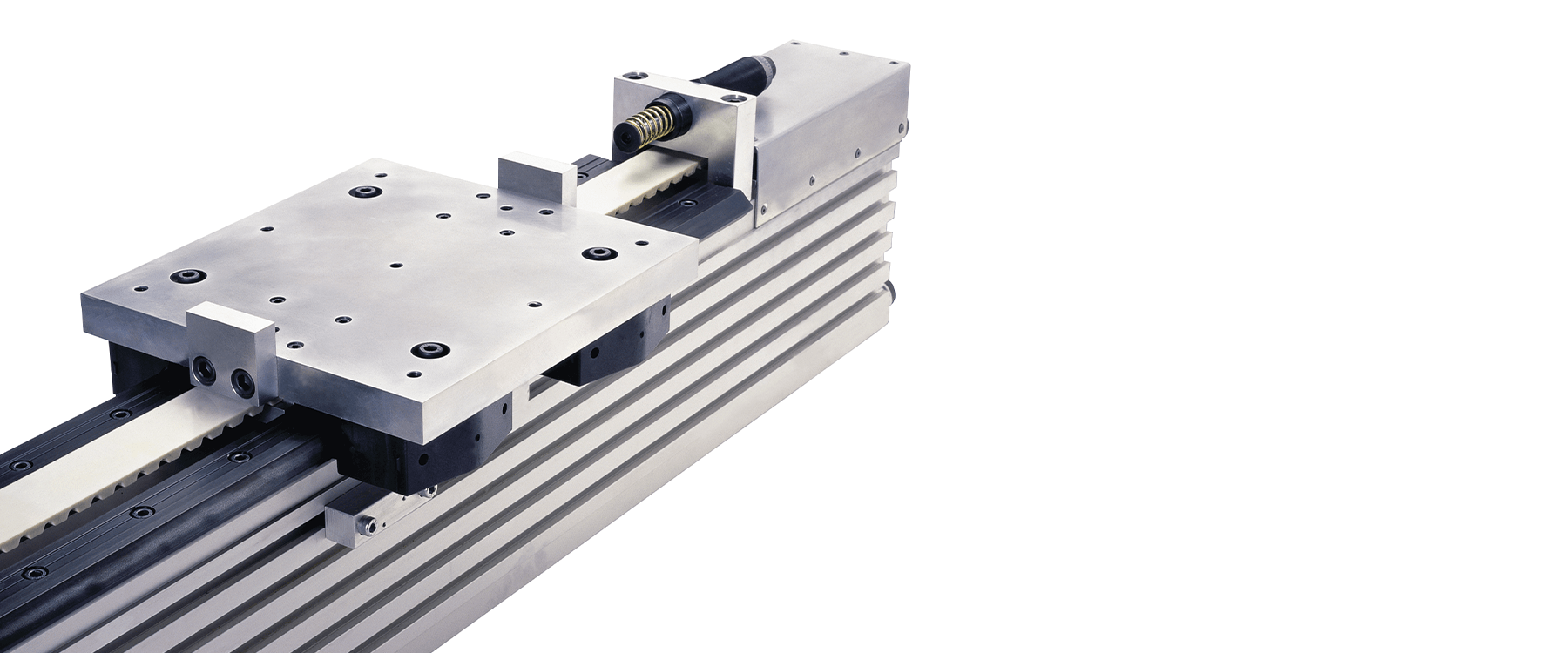

Durable and high load capacity – A high performance unit with steel reinforced timing belt and heavy duty beams to cater for high demands, adverse conditions and heavy loads.

Saves time and money – HDLS heavy duty linear actuator is a modular belt driven unit, which will save hours in design and assembly time.

High driving forces – Of 10kN or greater make this unit ideal for automotive or other heavy duty pushing requirements.

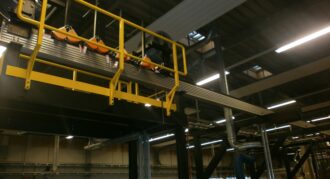

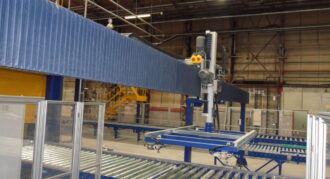

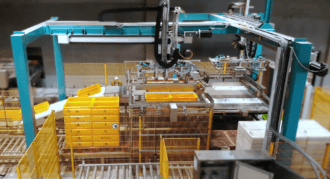

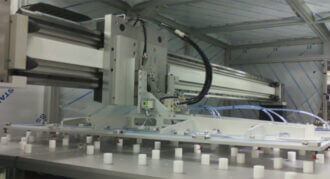

Heavy duty gantry – The strong beam section will perform a gantry function as part of the structure with no additional support required.

Low maintenance – Offering the inherent benefits of HepcoMotion’s V guide technology, including high reliability and low maintenance, HDLS is popular in high duty applications where round-the-clock, reliable running is vital.

Lubrication – Lubrication options are available to maximise life and reduce service intervals, with no re-lubrication required in many cases.

Versatile – 3 formats available for a wide range of applications (wide unit, narrow unit, and angled unit).


  • Lengths are available up to 6m in one piece, longer lengths available with joins, and 2 sizes of carriages available.
  • The strong beam section will perform a gantry function as part of the structure with no additional support required
  • Low backlash system allows for higher positional repeatability

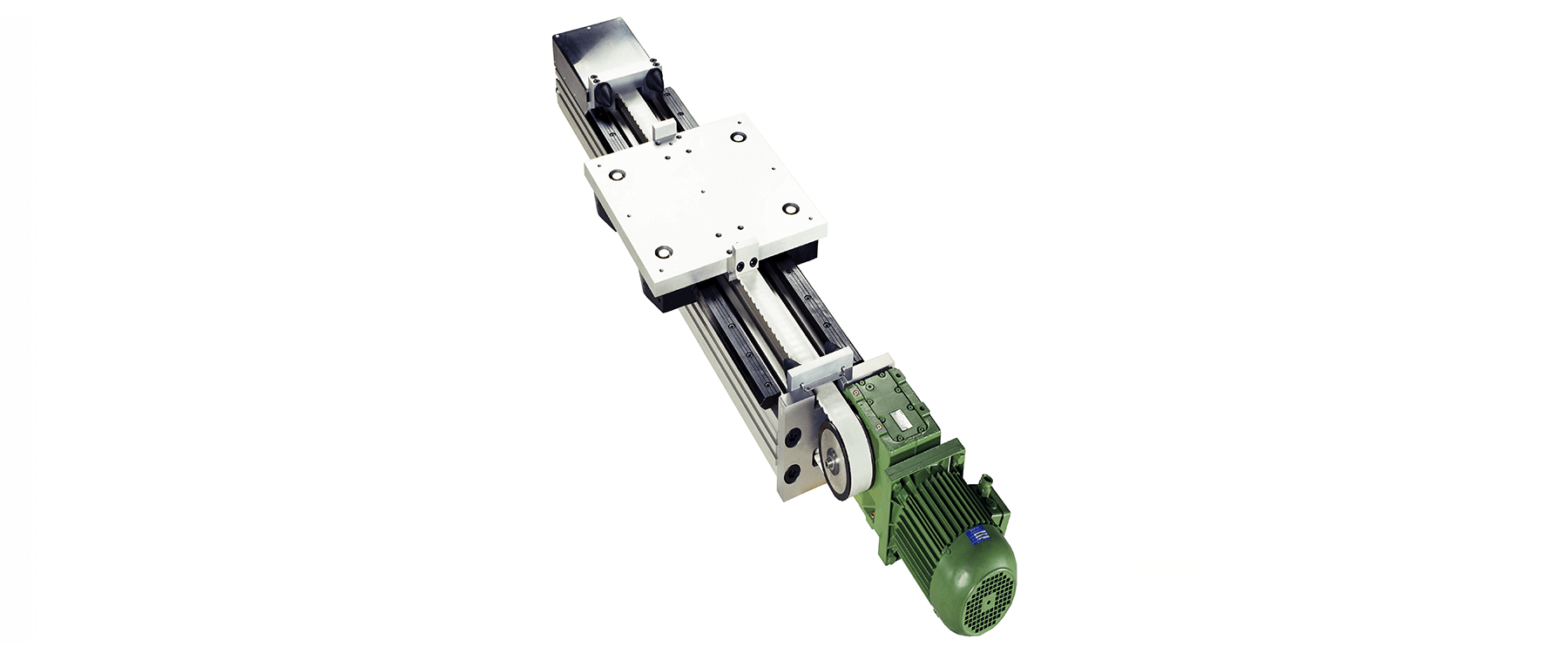

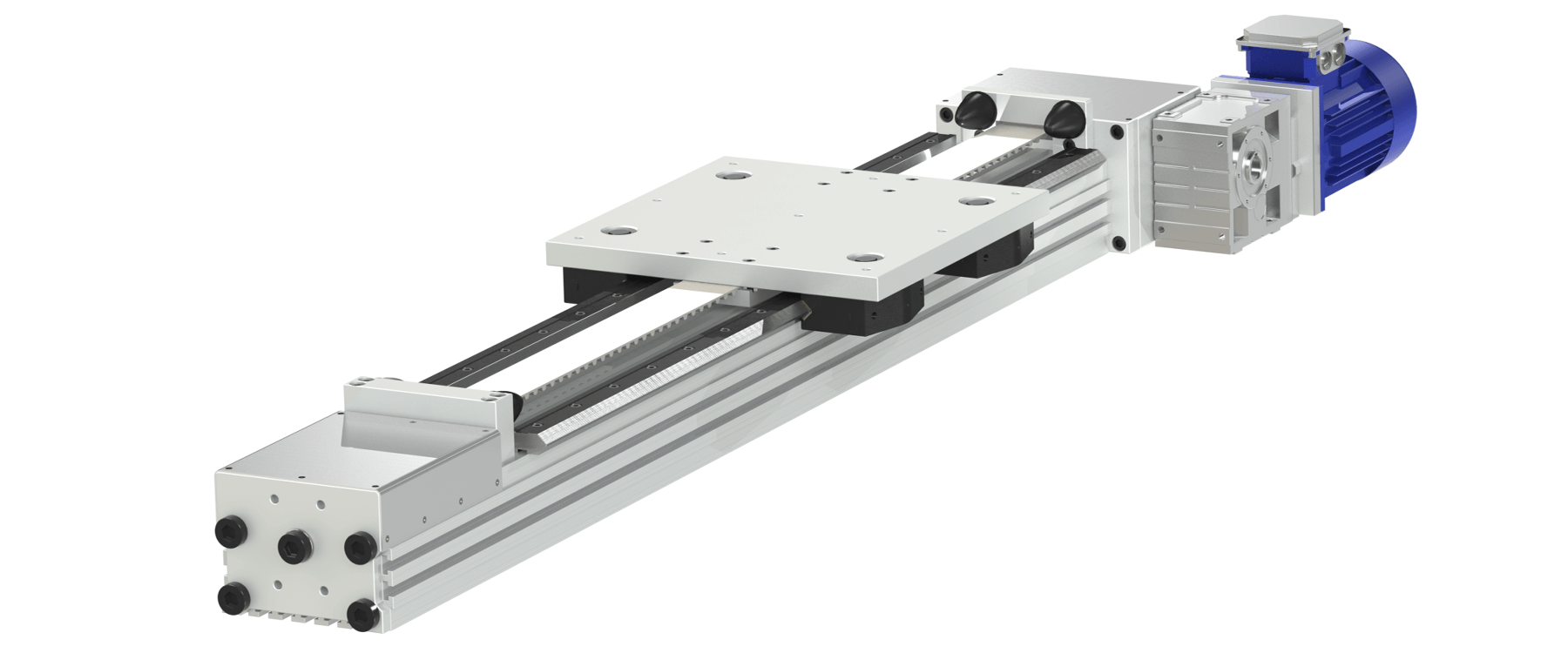

  • Drive options from keyed shaft to integral helical bevel gearbox with either motor adapter flange, or a wide choice of AC motors
  • Low maintenance cap wipers can be linked to automatic lubrication system
  • Carriages can be customised to the required size, shape and hole requirements. Additional carriages can also be fitted
  • T-nuts, T-slots and fixing brackets are available for easy mounting of clamps and switches
