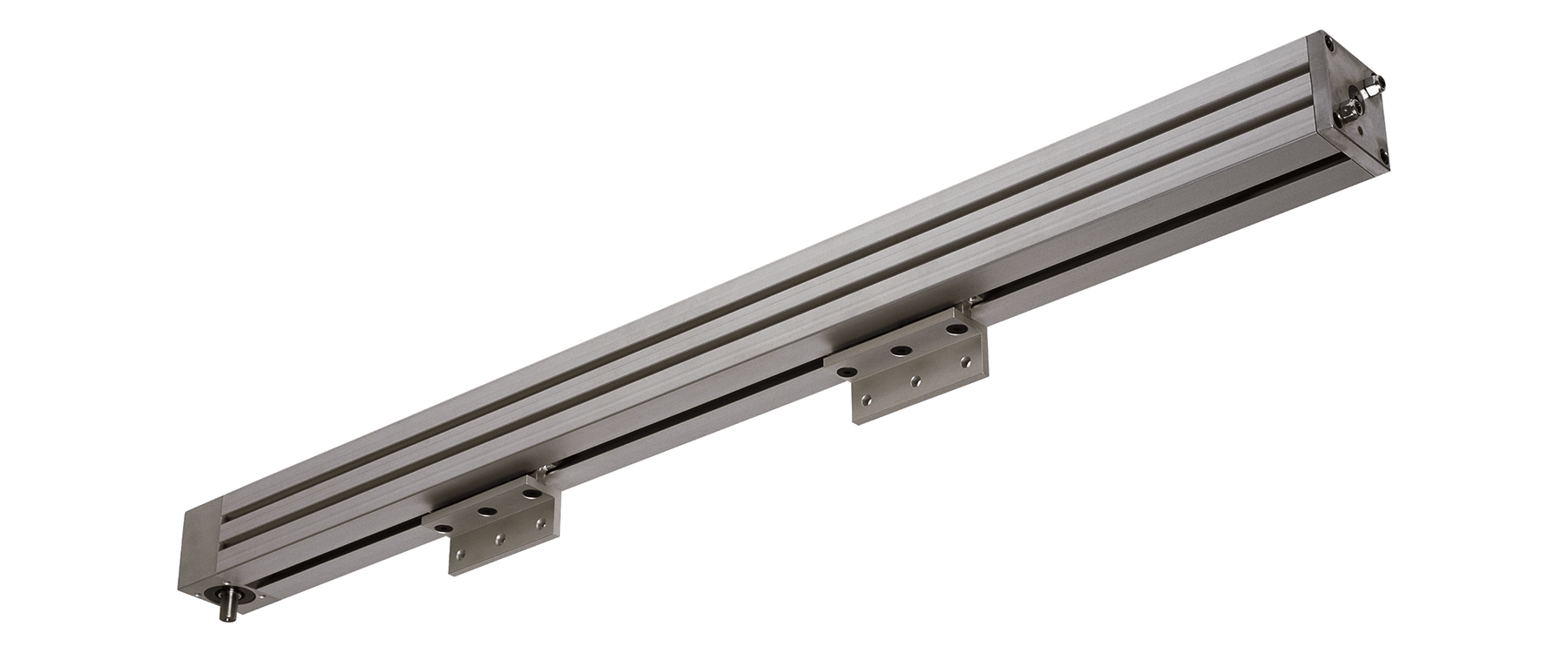

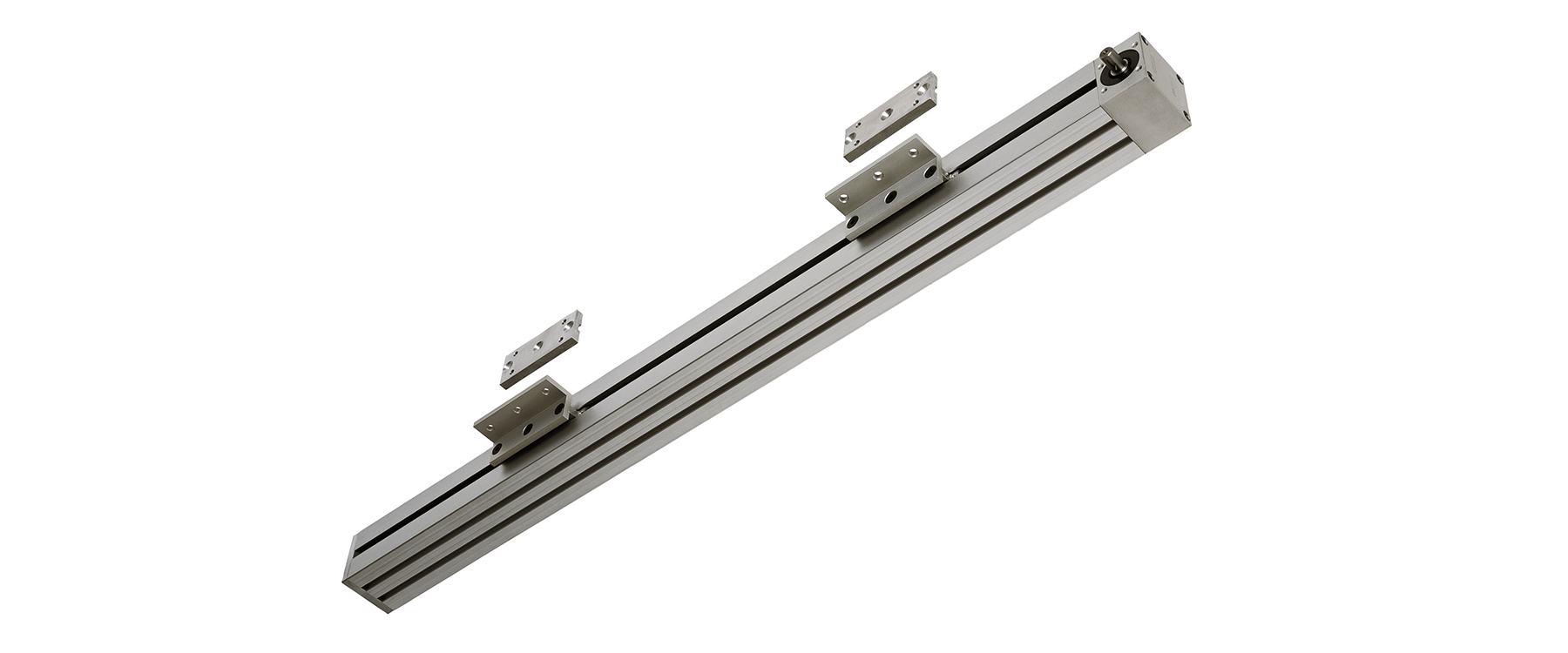

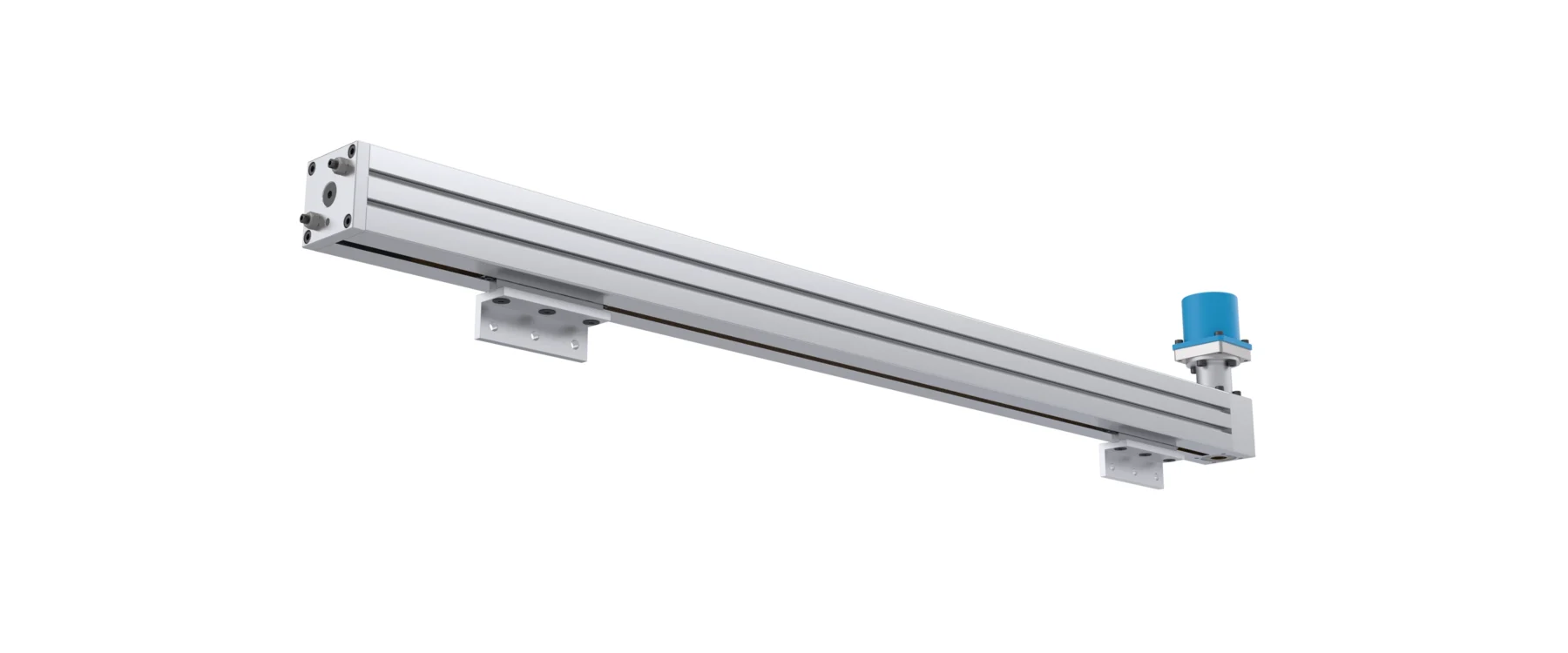

DAPDU2 – Dual Action Linear Actuator

A low maintenance, dual action linear actuator suitable for systems requiring opening and closing movements.

HepcoMotion - DAPDU2 – Dual Action Linear Actuator
HepcoMotion - DAPDU2 – Dual Action Linear Actuator
HepcoMotion - DAPDU2 – Dual Action Linear Actuator
Load: up to 500N
Speeds: up to 6m/s
Low maintenance
Long system life
Quiet and smooth running

A low maintenance, dual action linear actuator suitable for systems requiring opening and closing movements.

Dual action carriages – Two or more carriages move in opposite directions symmetrically for systems requiring bi-parting opening and closing movements.

Herculane® wheel technology – DAPDU2 features the same Herculane® wheels that are popular in the PDU2 unit and give excellent load capacity and durability with quiet operation.

Low maintenance – The low friction synthetic wheels offer a long service life and are low maintenance as no lubrication is required.

Flexible – With multiple sizes and configurations including a choice of drive options, flat or angled carriage plates for easy mounting and multi carriage arrangements for wider door applications, DAPDU2 is versatile to fit the application needs.


  • Simple belt adjustment
  • High strength beam with T slots to suit aluminium profiles
  • A carriage adjustment feature allows the system to be reset to as-new preload where required, on very high duty applications.
  • Units can be supplied with a top or bottom mounted or double shaft, or with a fitted motor or gearbox
  • Compact section size and lightweight aluminium construction makes for easy installation
  • Internal buffers for end of stroke protection

PDU2 / DAPDU2 / PDU2M Quick Selector

This diagram provides an overview of the bearing sizes available and their load capacity depending on the application type.

PDU2 Belt Driven Linear Actuator
