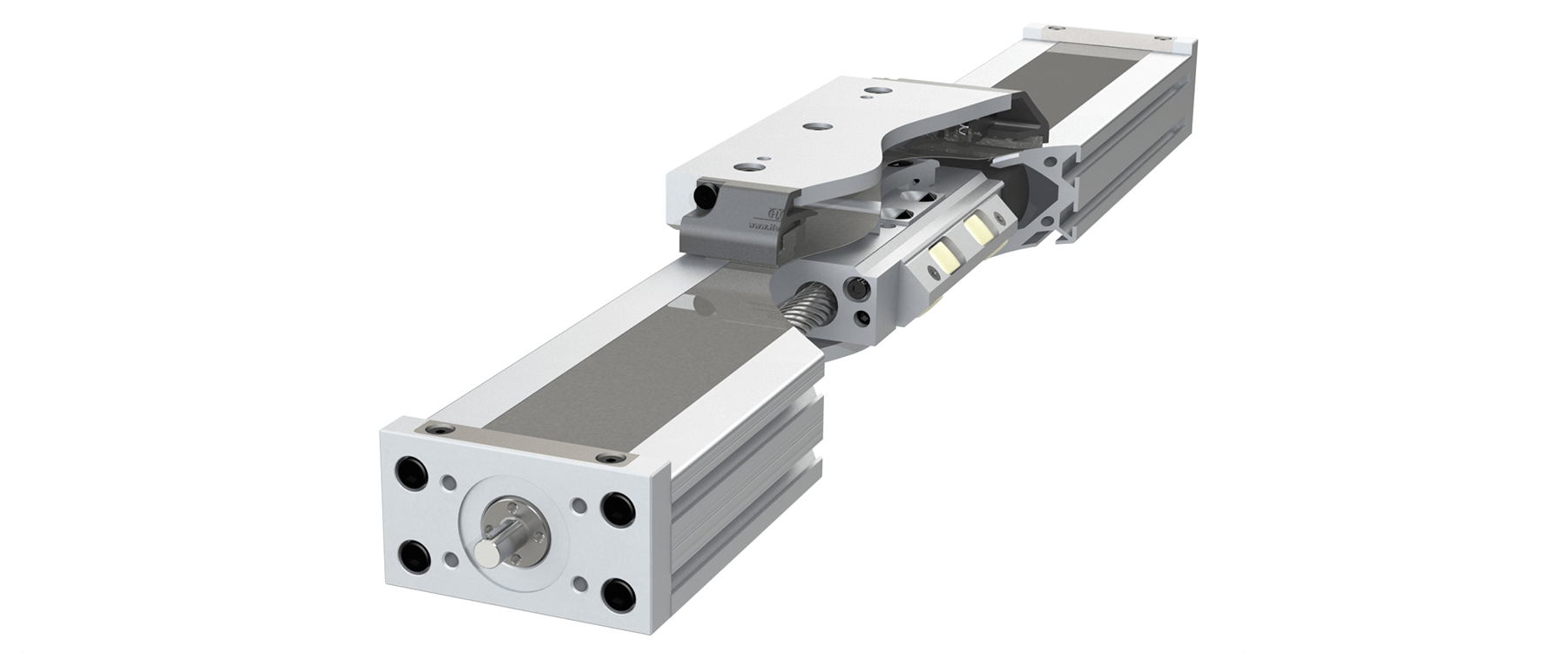

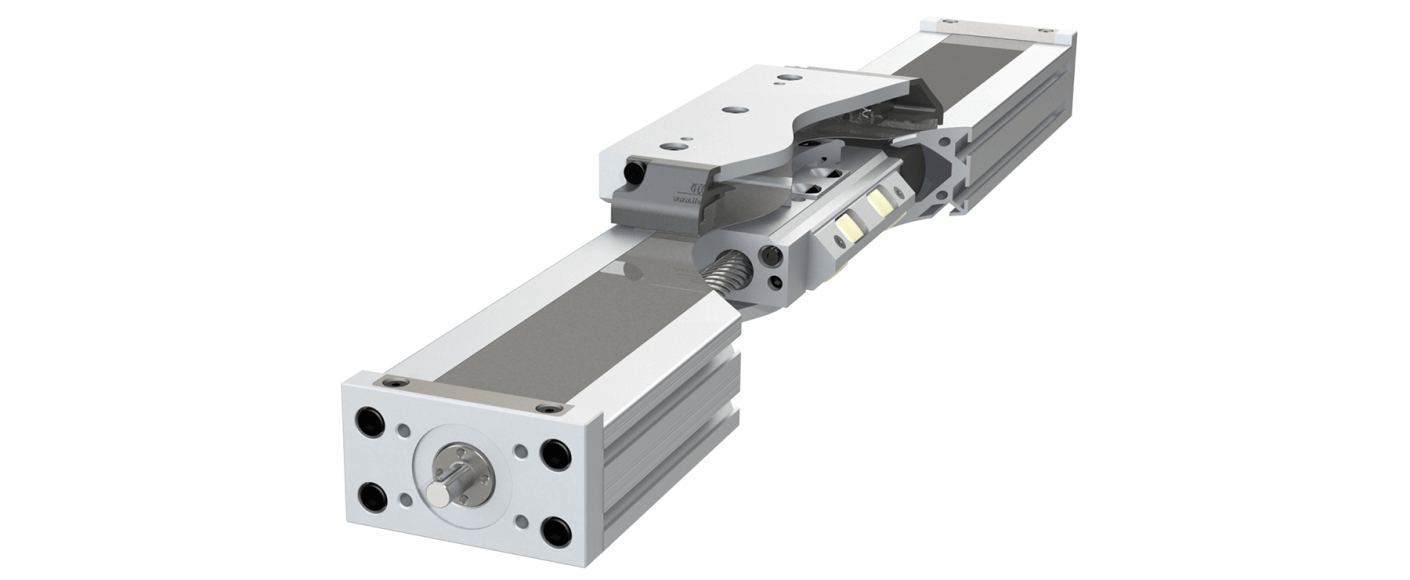

PSD – Lightweight Ball Screw Linear Actuator

A lightweight, space saving, ready to mount system with a ball screw for excellent accuracy and performance in a cost effective package.

PSD Lightweight Screw Driven Actuator

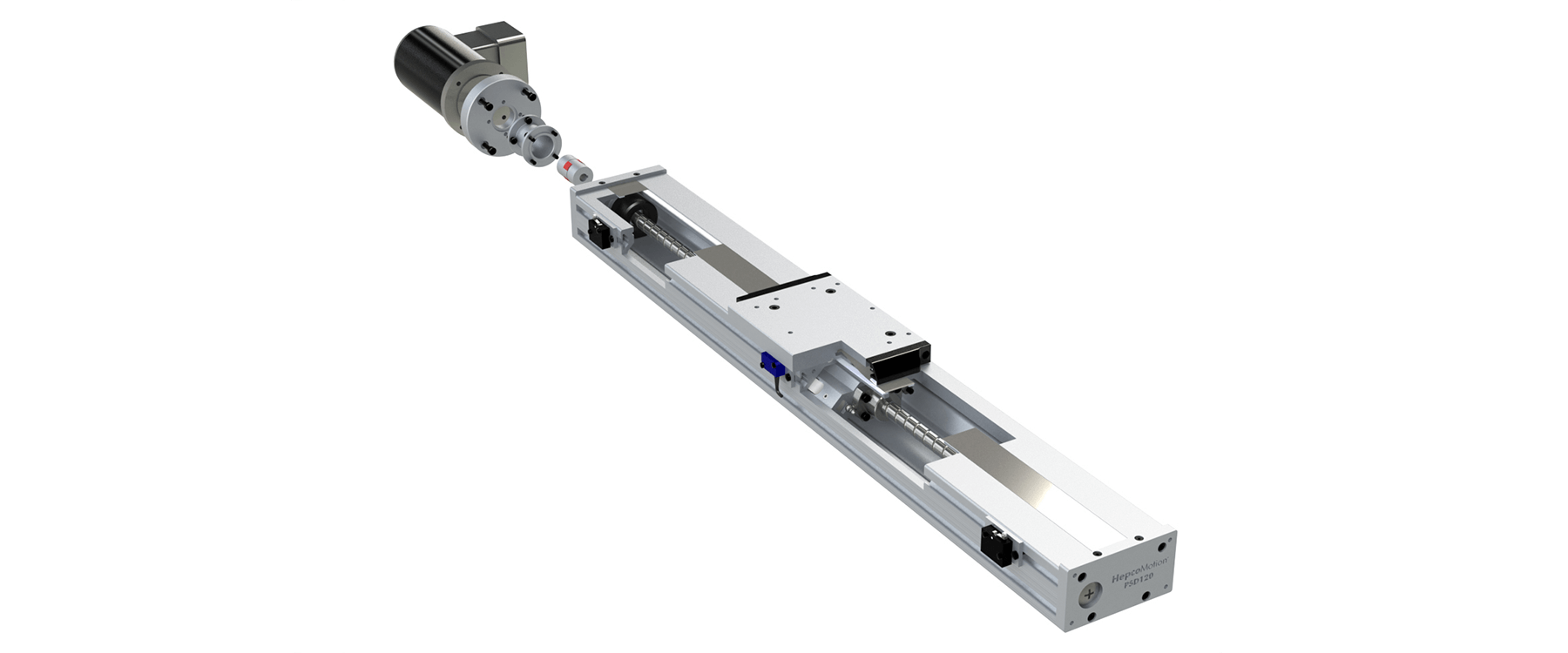

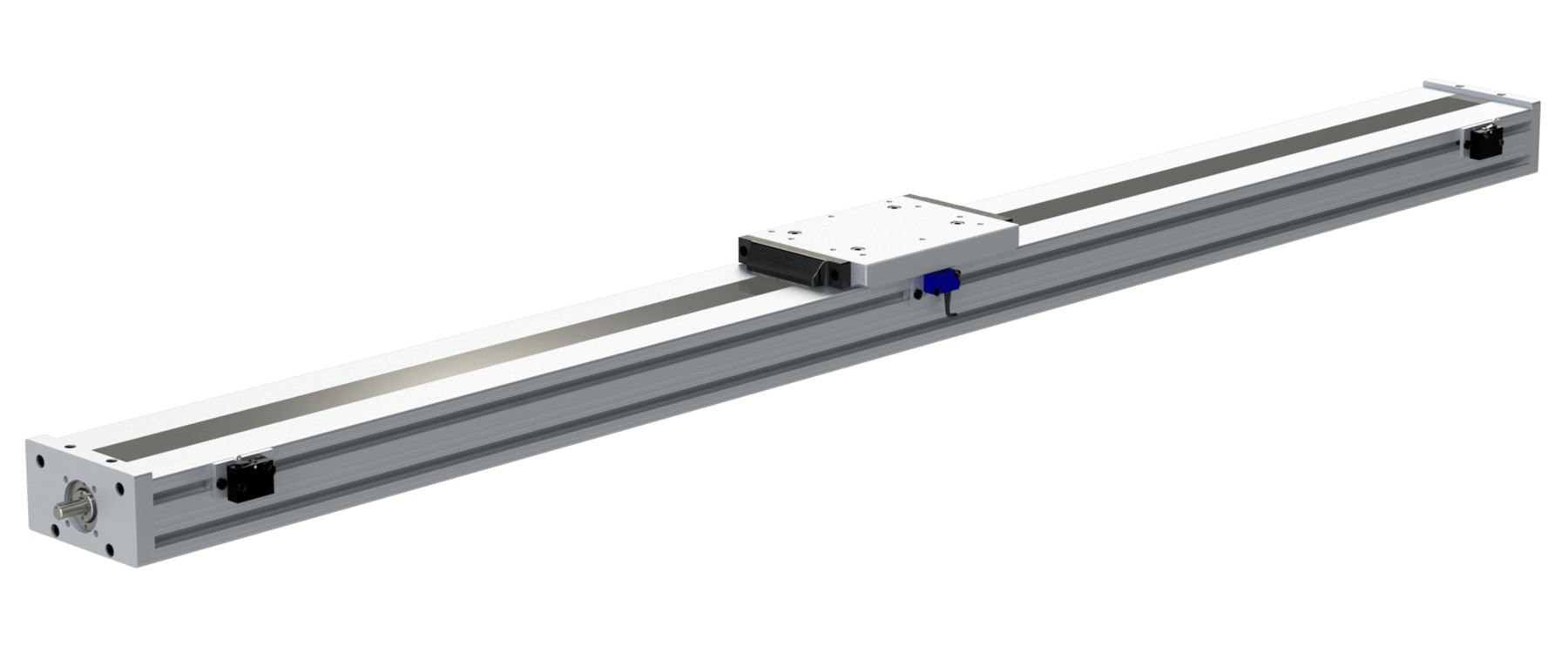

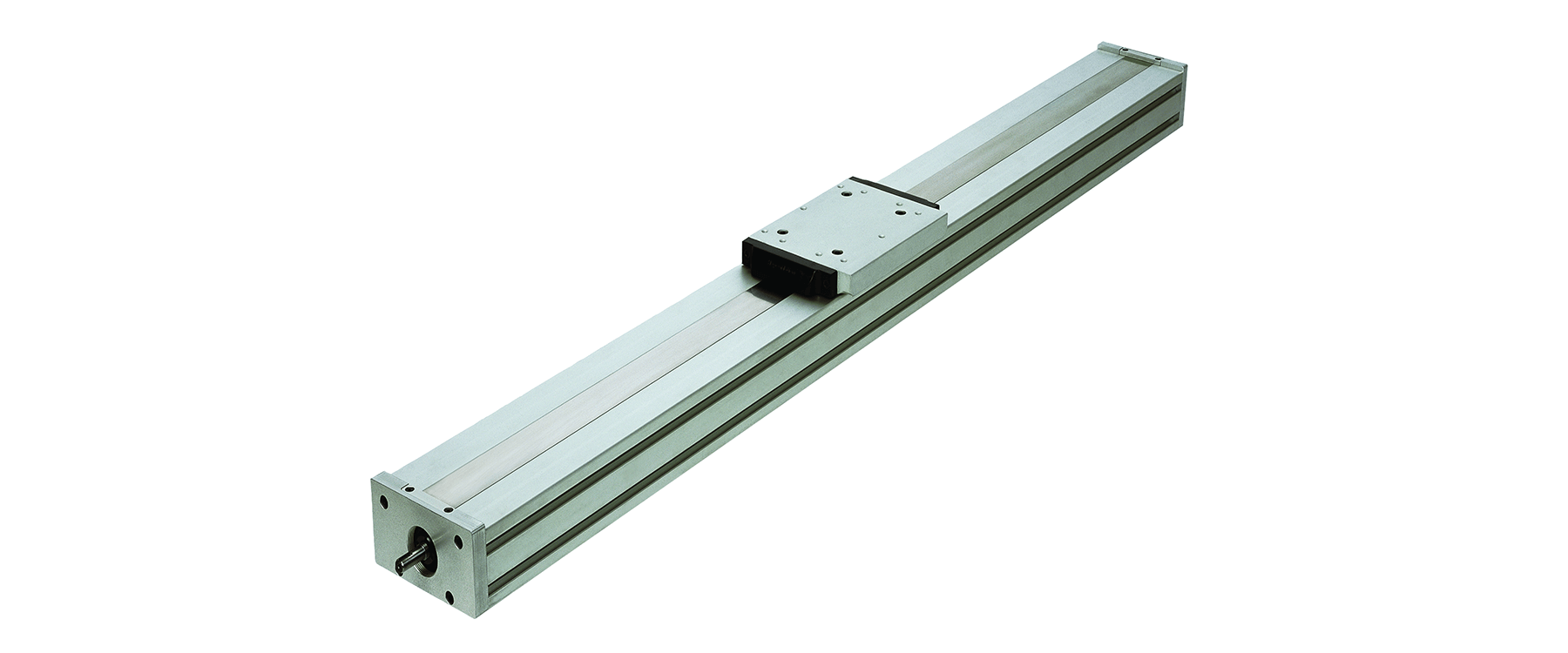

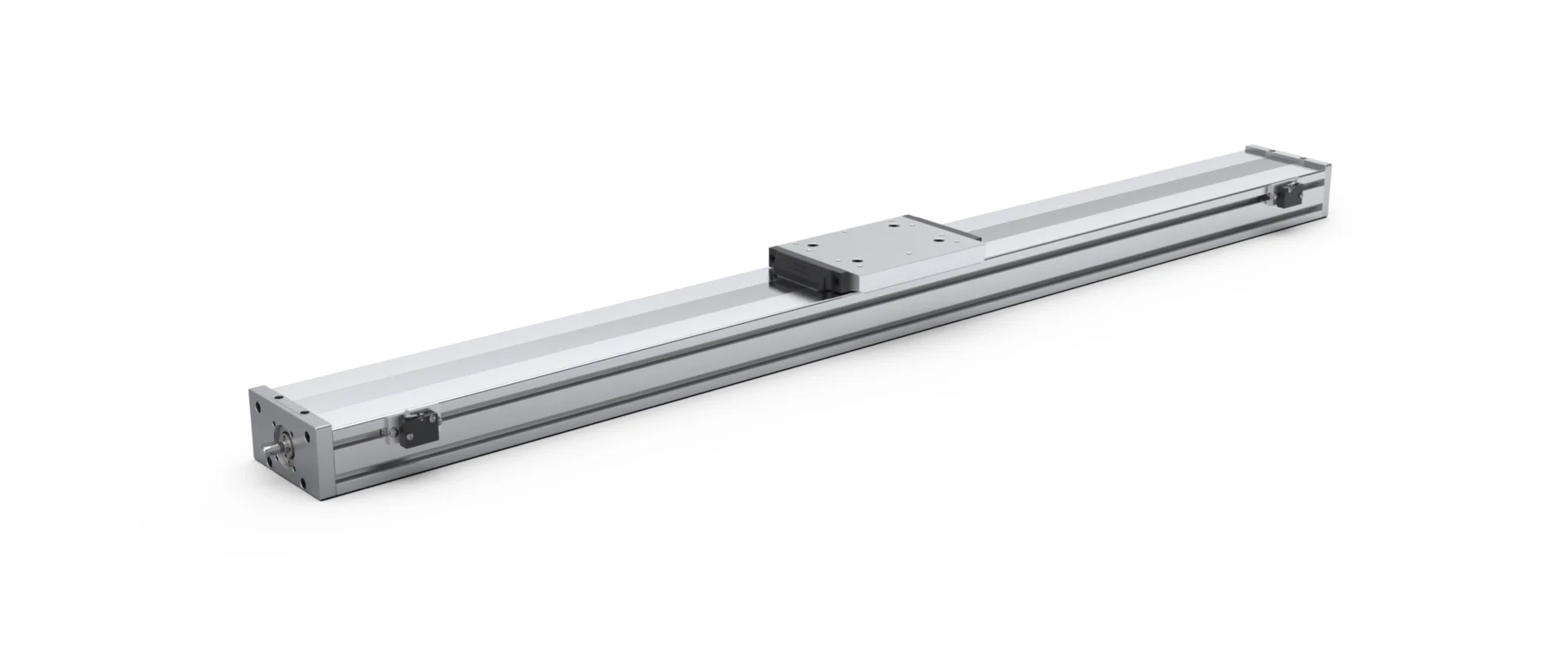

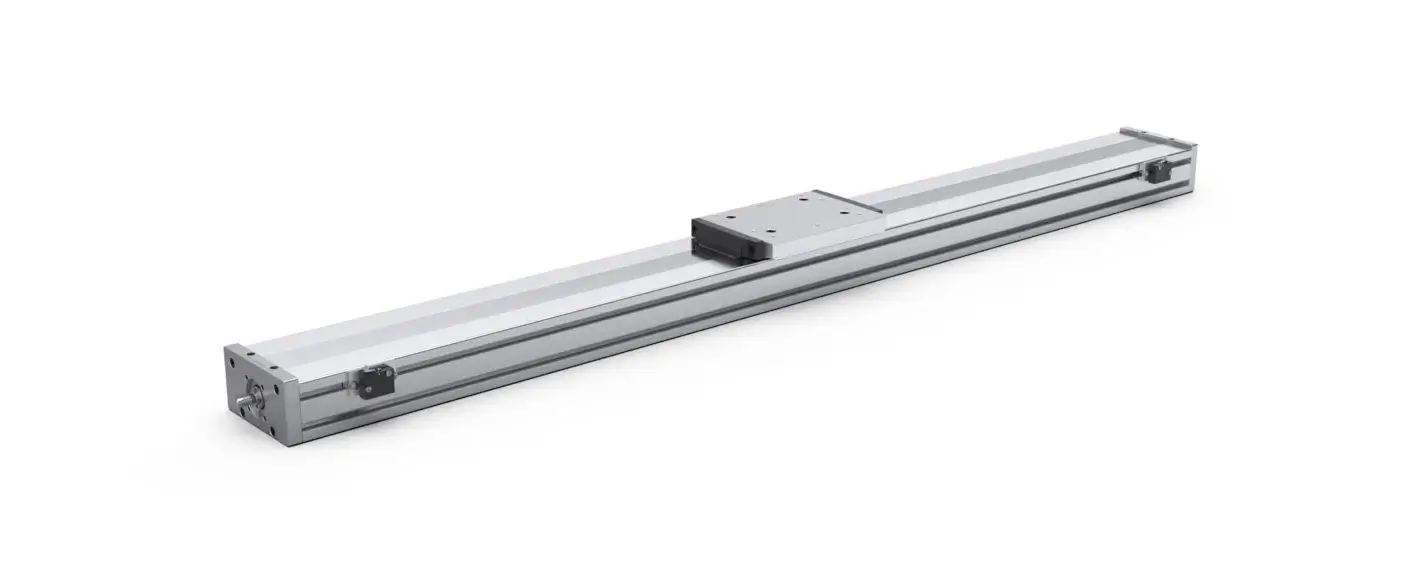

PSD120 Lightweight Screw Driven Actuator
PSD120 Lightweight Screw Driven Actuator
PSD120 Lightweight Screw Driven Actuator
Load: up to 700N
Speeds: up to 0.8m/s
Low maintenance
Long system life
Quiet and smooth running

A lightweight, space saving, ready to mount system with a ball screw for excellent accuracy and performance in a cost effective package.

Lightweight and space saving – PSD works well for applications using small, lightweight components, and is perfect for working in compact working areas.

Flexible and configurable – Modular system allows optimised solutions for specific application requirements. Available with either ball screw or leadscrew drive options.

Herculane® wheel technology – PSD features the same Herculane® wheels as seen in the PDU2, which gives excellent load capacity and durability with quiet operation.  The low friction synthetic wheels offer a long service life and are low maintenance as no lubrication is required.

Ready to mount – This off-the-shelf solution reduces design and installation costs by easily integrating into systems that require accurate positioning in a compact environment.


  • PSD comes in two sizes; 80mm and 120mm, and is available in a large range of stock lengths
  • Stainless steel cover available to effectively seal the unit from debris
  • Works well in Z-axis applications
  • Double acting PSD80 available
  • The beam profile is compatible with the Hepco MCS aluminium frame construction system, and can be assembled into multi-axis systems with Hepco PDU2 and PDU2M units

PSD80 / PSD120 Quick Selector

This diagram provides an overview of the bearing sizes available and their load capacity depending on the application type.
