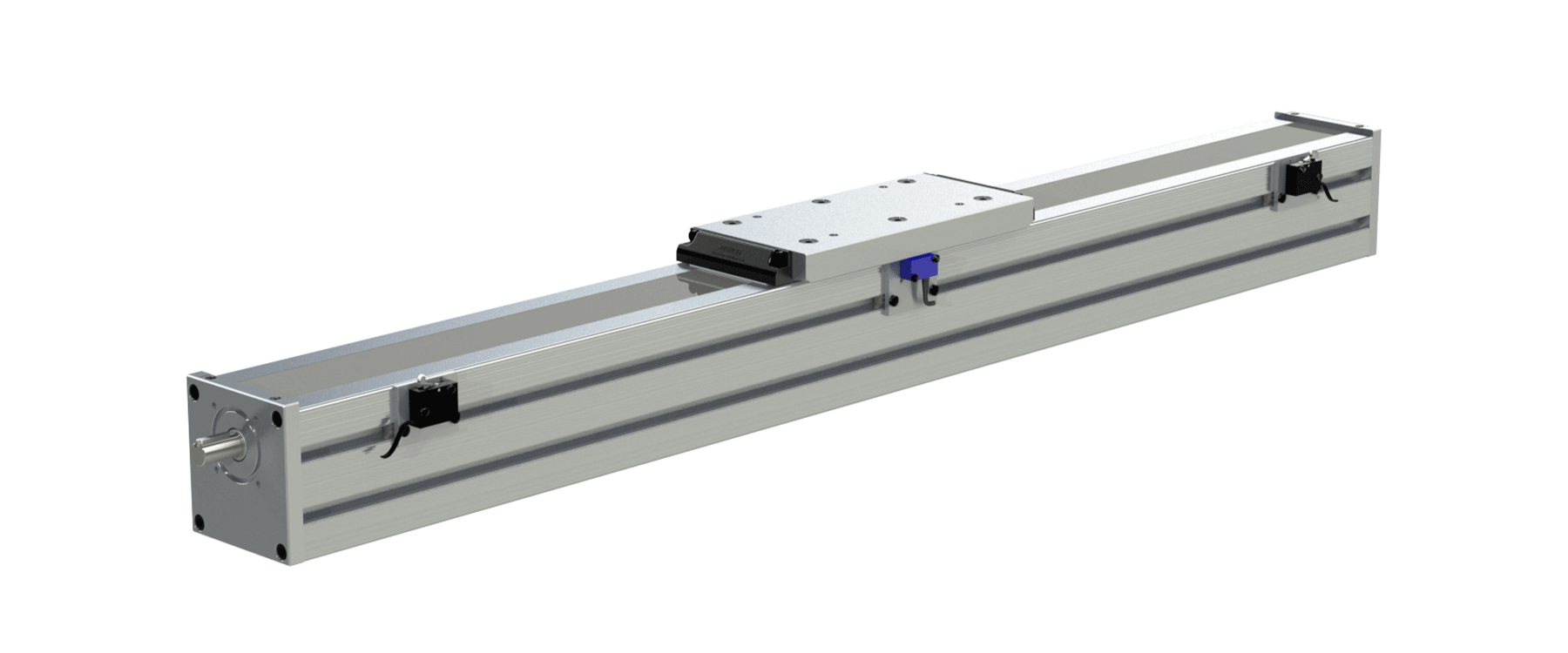

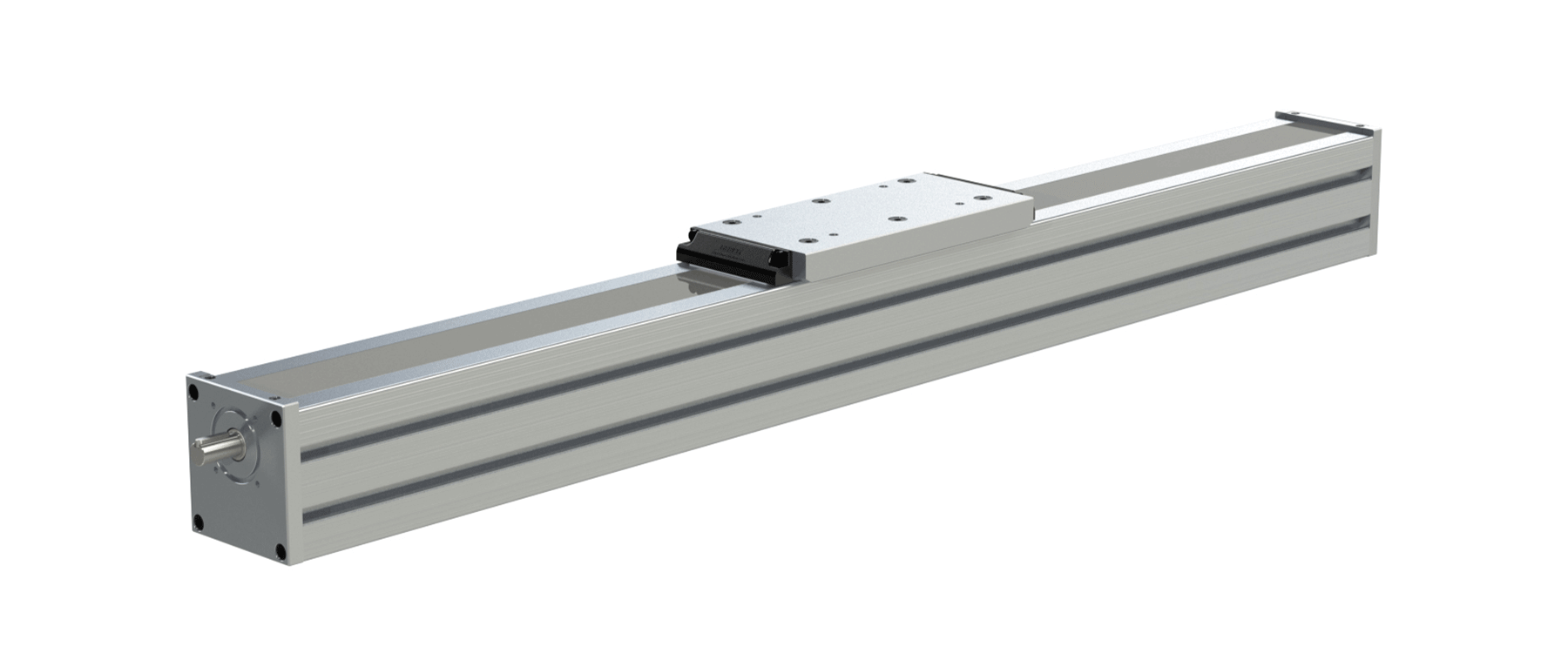

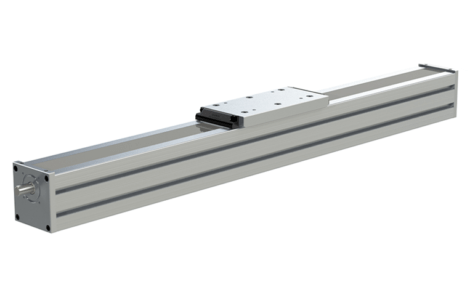

SDM Ball Screw Actuator

Load Range 0 – 13,760N Speeds 0 – 1m/s

Hepco’s SDM Ball Screw Actuator provides a linear solution with a long work life; this product has been designed with a ball screw drive to provide additional linear precision and force. Sealing is provided by a very effective stainless steel band running along the length of the beam. Two actuator sizes are available as standard 20-80 & 30-100.

  • Five ball screw pitches available as standard 16×5/10/16, 20×5/20.
  • Actuators supplied up to 2800mm in one piece.
  • Standard production, units available on short lead times.
  • Positive sealing using linear seal and stainless steel band along the length of beam.
  • High load using Caged Linear Ball Guides.
  • Long carriage option has two bearing blocks for increased capacity.
  • Available with motor connection kits.
  • Easy access re-lubrication points, with “close off” threaded plugs.



Quick Selector

Use the quick selector for an initial product specification. For further assistance please contact Hepco’s technical team.

HepcoMotion - Load Diagram | SDM

High Duty

Normal

Low Duty

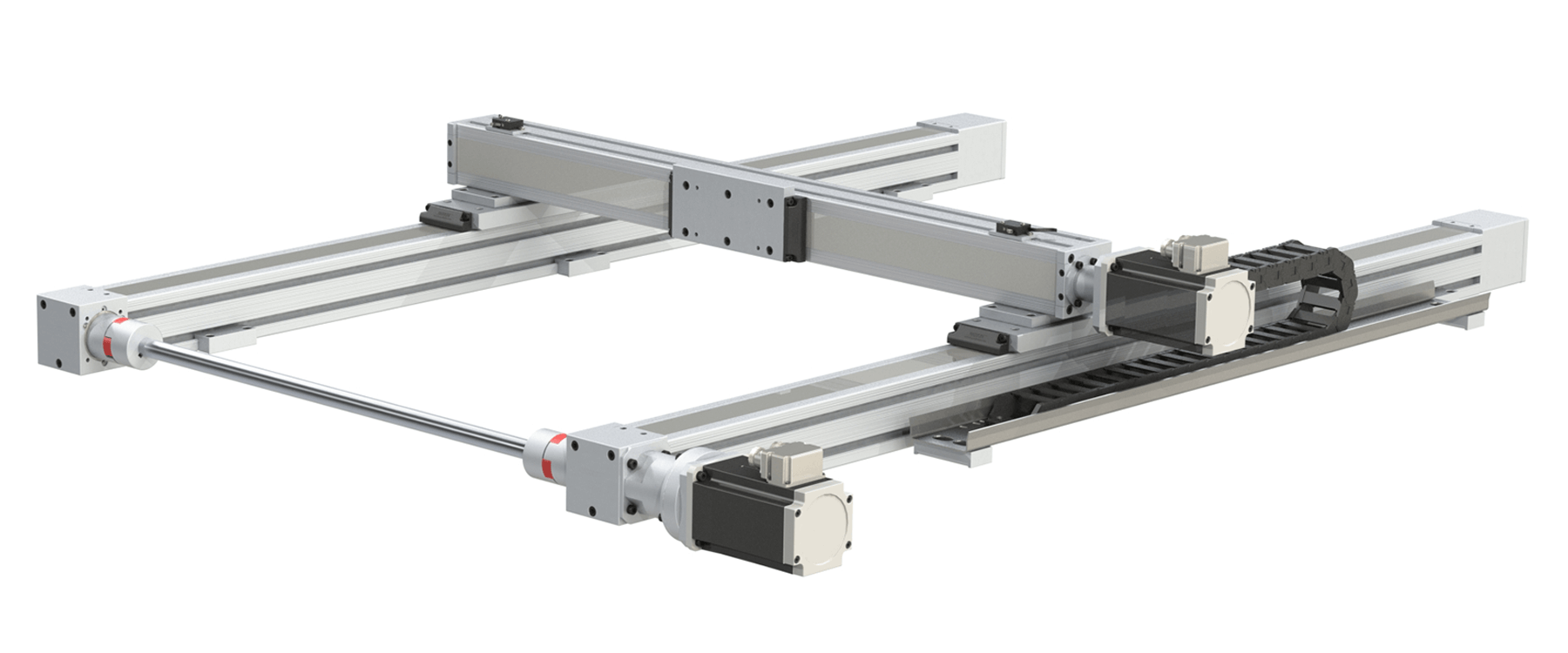

Hepco’s XYZ Actuator System Driven By ABB
This demonstration of ABB's drives benefited from the smooth and accurate guidance of Hepco's XYZ actuator system.... Read more

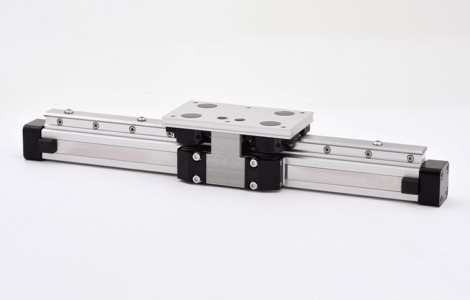

Related Products
